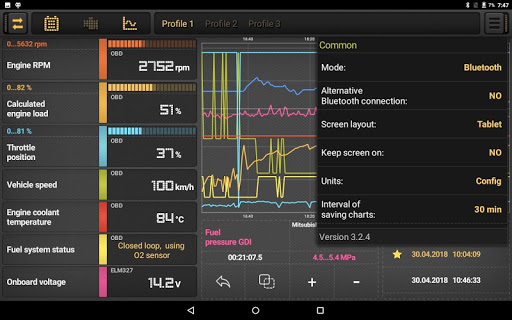

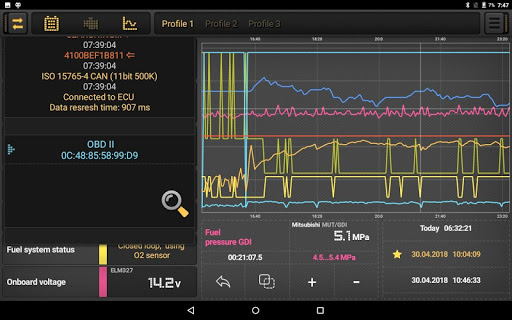

The application for car diagnostics allows you to display data from various electronic vehicle blocks using the ELM327 OBDII adapter, display graphics in real time, and also save them and view them later, shows and Resets engine fault codes / DTC trouble codes.
It is possible to configure the min/max value for each sensor/PID, at which output, an “alarm” will be triggered.
Supports Bluetooth ELM327 and Wi-Fi ELM327 OBD adapters.
It is better to use adapters V1.5, to V2.1 a lot of complaints about incorrect work.
Attention!
ELM327 chips work only with cars with OBD2 support:
Cars manufactured in the USA since 1996,
In the Europe countries since 2001. (gasoline cars) and since 2003. (diesel),
In Japan, since ~ 2000.
In addition to standard OBDII parameters, special ones are supported, for different
car brands, the following options are now available:
BMW - (DIESEL, E91+AT)
BYD - (MT20U, ABS)
Chery - (MT20U, MT20U2, ActecoME797)
Chrysler/Dodge - (DIESEL, AT)
Citroen - (C4, C5, Sagem2000, CAN/AT6, EDC16C3 , MEV17.4.2)
Daewoo - (SiriusD42)
Fiat - (IAW49F, IAW5SF)
Ford - (ECU, PWM/AT, PWM/ABS, CAN/DIESEL, CAN/AT, CAN/TPMS, CAN/ABS )
Geely - (MT20U, MT20U2, M797)
GM/Chevrolet/Pontiac - (ECU, AT, ABS, SiriusD42)
GreatWall - (MT20U2, EOBD, CAN/4D20)
Honda - (Fit, Accord, CRV/DIESEL, Insight)
Jeep - (ECU, DIESEL, AT, TPMS)
KIA, Hyundai -~15 PIDs for each model(ATF Temperature,
Knock detected and etc)
Land Rover - (RANGE/3.6L, DISC4/3.0L, DISC3/TD6, FL2/TD4)
Lifan - (MT20U, MT20U2, ActecoME797, ME1788, ABS)
Mazda - (ECU, AT, ABS, CAN/TPMS, CAN/SWA)
Mercedes - (W203/CDI, W169/CVT, W168)
Mitsubishi - (CAN/ECU, CAN/CVT, CAN/SS4II, CAN/AWC, MUT/OBD, MUT/GDI)
(Once again, Mitsubishi until ~2000(2000 50/50) does not support OBD, so can not
work with ELM327)
Nissan - (CAN/ECU, CAN/CVT, CAN/AWD, CAN/METER, CONSULT2)
Opel - (ECU, AT, ABS, X18XE, Z16XE, Y17DT, CDTI1.6L, CDTI1.3L)
Peugeot - (MEV17.4.2, EDC16C3, ME744, AL4/CAN, AL4/KWP)
Renault - (CAN/ECU, CAN/DIESEL, KWP/DIESEL, Sagem2000, KWP/EMS3132)
Skoda - (CAN UDS TSI/TFSI)
SsangYong - (KWP/ECU, KWP/AT5, D20DT, CAN/D20DTF, CAN/DSI6)
Subaru - (ECU, ECU/DIESEL, SSM2, SSM2/DIESEL, SSM2/AT, KWP/ABS)
Suzuki - (CAN/ECU, KWP/ECU)
Toyota - (CAN/ECU, KWP/ECU, Prius10,Prius20,Prius30/Alpha,Prius30/AC)
VAG - (TDI/2.5L, CAN UDS TSI/TFSI)
Volvo - (D5/P3)
VAZ - (Yanvar 7.2, Itelma VS5.1 R83, Itelma M73, Itelma M74
KWP/CAN, AT/JATCO, AMT/ZF, Vesta/Largus K4M,H4M)
GAZ - (MIKAS10.3/11.3, MIKAS11/E2)
ZAZ - (MIKAS10.3/11.3, MR140)
UAZ - (MIKAS10.3/11.3, MIKAS11/E2, M86CAN)
The list of models and parameters will be updated...
Not all PIDs from the list for a certain car brand can be supported by your car, for convenience you can select the types of the required PIDs in the "Settings / PID types"
For certain brands of cars (currently some Mitsubishi models), have the ability to control various systems (turn on a cooling fan, a gasoline pump, etc.)
To read the MUT parameters and control the actuators on Mitsubishi models with CAN bus(Montero/Pajero IV, Outlander 2, etc.), you need to create a profile with the ISO 9141-2 protocol, and in the remaining profiles (for reading CAN parameters) leave the protocol ISO 15765-4 CAN (11bit 500K) or automatically.
Not all Mitsubishi CAN-bus models support ISO 9141-2 connectivity.
So there are ample opportunities for creating your own parameters.
Added a profile for Haval "Jolion 1.5T UAES/DELPHI".
Bug fixes
- Added profile for Geely Monjaro
- Various fixes
- Added profile for Geely Monjaro
- Various fixes
- Added profile for Tank 300
- Various fixes
- Added profile for Kia Optima/K5 JF
- Added profile for Geely Atlas, Atlas Pro, Tugella
- Fixed bugs
- Now PIDs/Sensors are added to the bottom of the main list
- Fixed some Mitsubishi PIDs (CAN/4D56)
- Added backup of all application settings to a file
- Added profile for Chery Exeed
- Added profile for Geely X7
- Fix various bugs
- Fixes for some Citroen models
- Added PIDs for K4M, H4M Vesta / Largus engines
- The selection of available sets of sensors/PID for convenience has been
moved to the left sliding menu.
- Various fixes
- Added setting "Read/Clear DTC only in basic
blocks or in all blocks "
- Added Hyundai i20 MPI 1.4/CRDI models
- Added error descriptions for BMW
- Bugs fixed
- Added PIDs to CAN/ECU2 list for Renault
- PIDs for ECU M86CAN UAZ, VAZ
- Improvements when working with WIFI adapters
- Bugs fixed
- Added export of charts to CSV file
- More convenient menu for creating a new profile
(added item "Template profiles")
- Added PIDs for BMW E91 AT,
Hyundai Solaris II,
Kia Rio IV,
Honda Insight,
ZAZ MR140.
- Added SAGEM2000 PIDs for Peugeot
- Added some PIDs for Mazda
- Now saved charts can be named
- Language selection has appeared in the settings menu
- Added export/import of profiles to/from file
- In PID settings, "AT commands before/after" can now be entered
several commands separated by commas
- Added ECU ABS Lada Vesta
- Fixed PID "Onboard voltage" VAG TDI / 2.5L
- Optimization, bug fixes
- Fixed reading / erasing DTC for diesel SsangYong
and added "D20DT" fuel consumption calculation method
- Bug fixes, optimization
- Fixed PID "Reset oil degradation count CVT Outlander"
- Added "kPa / psi" selection in unit settings
- Bug fixes, optimization
- Added profile "CAN UDS TSI/TFSI" for VAG
- Added profile "Toyota OBD + AT/CVT/VVTi"
- Fixed PID "Throttle position method 2" MUT Mitsubishi
- Fixed working with some Volvo ECUs, etc.
- Bug fixes and optimizations
- Now you can quickly change the color of the parameter
tap with two fingers on a parameter in the active list
- Added Opel Zafira A X18XE1 profile
- Bug fixes and optimizations
- Added H1/Grand Starex (D4CB) Hyundai model
- Added Solaris 1.6 MPI (G4FG AD) Hyundai model
- Added PIDs APS Main and APS Sub Mitsubishi MUT
- Added EDC17C10 CAN Peugeot/Citroen unit
- Added ECU ME17.9.7 UAZ
- Various fixes
- Added PIDs for the EDC15C2 Peugeot/Citroen unit
- Fixed bugs
- Corrections to work with CAN data - bus
- Optimization for Android 10
- Added unit of measurement of fuel consumption "kilometers per liter"
- Now the current data is displayed in the PID / sensor selection list
for each parameter so that you can see which PIDs work and which do not.
- Added full screen mode.
(Settings -> Screen Layout: Phone / Tablet /Phone Full Screen / Tablet Full Screen)
- Added setting "Show inactive (archived) DTC: Yes / No"
- Added option "Fuel flow trip average" in the list of OBD.
- Added car brand Daewoo
- Added model Huyndai i30 1.4 G4FA
- Added profile templates for different models
- Added PIDs for wideband oxygen sensors in the OBD list
- Fixed PID "CVT Oil Degradation Reset" Mitsubishi / Nissan
- Now hidden PIDs are saved for each profile separately
- Added profile templates for different car brands
- Added PIDs for wideband oxygen sensors in the OBD list
- Fixed PID "CVT Oil Degradation Reset" Mitsubishi / Nissan
- Now hidden PIDs are saved for each profile separately
- Now, by tap on the point on the graph, a full scale of values is displayed.
- Bug fixes
